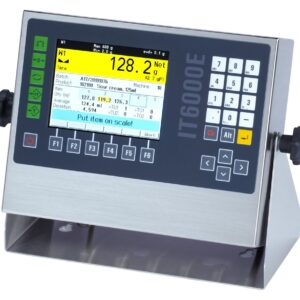

Features:

• Design: Stainless steel housing with IP69K protection, suitable for harsh environments.
• Display: Bright color TFT display with wide viewing angle, suitable for clear weight display.
• Operation: Includes alphanumeric keyboard, function keys, and programmable softkeys for easy operation.
• Versatility: Designed for demanding industrial applications including chemical, pharmaceutical, and food industries.
• Modular Concept: Various configurations available for different applications such as filling, batching, checkweighing, and vehicle weighing.
• Interfaces: Multiple communication options including Ethernet, USB, serial interfaces (RS232/RS485/RS422), and fieldbus interfaces (Ethernet/IP, Profibus DP, Profinet, Modbus TCP).
• Weighing Electronics: Supports 1 or 2 internal and up to 6 external scale interfaces, with high noise immunity and W&M approved resolutions up to 6,000 d.
• Operating System: Linux-based with integrated web server, suitable for LAN integration and remote access.

Applications:

• Batching Systems: Automated and manual batching, management of raw materials and recipes, with network integration for recipe downloads and batch results storage.
• Vehicle Scales: W&M approved for vehicle weighing, including management of product and address data, with optional accessories like transponder card readers and remote displays.
• Checkweighing: Fast weight capture for conveyor systems, with classification into tolerance zones and control of reject mechanisms.
• Bulkweighers: Used in shipping and receiving for bulk materials, with silo control and remote operation via fieldbus.
• Counting Scales: Captures and prints statistical data for products, suitable for production line use with entry of additional data.

Technical Specifications:

• Construction: Available in desk/wall-mount or panel-mount versions.
• Power: Supports 110-240 V AC or 12/24 V DC power options.
• Interfaces: Ethernet, USB 2.0, RS232/RS485/RS422, fieldbus options.
• Operating Temperature: -10 °C to +40 °C (14 °F to +104 °F), suitable for varied environmental conditions.
• Compliance: Meets EU and international standards for non-automatic weighing instruments and electromagnetic compatibility (EMC).

Programming and Integration:

• Free Programmability: Customize standard programs or create new applications using RTC program development environment.
• Integration: Includes WLAN option for wireless communication and remote access via internet.
