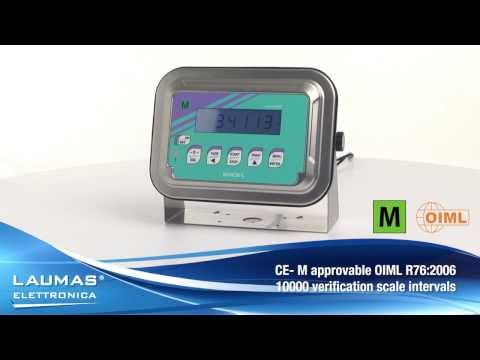

WINOX-L/R Weight Indicator

Trade Approved (2356) AISI 304 stainless steel Weight Indicator, dimensions 206 x 286 x 108 mm, stainless steel adjustable bracket included (overall dimensions: 206 x 290 x 187 mm). IP68 protection rating (IPX9K optional). Six-key membrane keyboard. 46 indicator symbols. Real time clock/calendar. Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal board/connectors.

Description

WINOX-L/R  stainless steel Weight Indicator, dimensions 206 x 286 x 108 mm, stainless steel adjustable bracket included (overall dimensions: 206 x 290 x 187 mm). IP68 protection rating (IPX9K optional). Six-key membrane keyboard. 46 indicator symbols (WINOX-L) / 16 indicator led (WINOX-R). Real time clock/calendar. Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal board/connectors.



Features:

  • Possible installations: wall, panel, column, desk
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Six-digit backlit LCD display, 20 mm height (WINOX-L) / Six-digit red LED display, 20 mm height (WINOX-R)
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
  • A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999

Some optional features:

  • IP69K protection rating
  • Data storage on USB pen drive
  • ATEX II 3GD version
  • 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V

European Community registered design.
